10mm Mill Finish Aluminum Honeycomb Panel
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
| Model Number: | ahp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard export wooden case |
| Supply Ability: | 40000 Square Meter/Square Meters per Day |
|
Detail Information |
|||
| Product Name: | 10mm Mill Finish Aluminium Honeycomb Panel For Wall Cladding | Size: | 1220X2440MM |
|---|---|---|---|
| Design Style: | Contemporary | Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
| Surface Treatment: | Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated | Color: | Customer's Requirements |
| Thickness: | 1/8" To 3" Standard | Width: | 48" And 60" Standard |
| Length: | Up To 190" Standard | Coating: | Clear Epoxy Primer Mill Finish Bond And/or Paint Ready |
| Protective Film: | OEM Accepted | Certificate: | ASTM |
| High Light: | 10mm Mill Finish Aluminum Honeycomb Panel,1220X2440MM Aluminum Honeycomb Panel,steel honeycomb panels PE Coated Antibacterial |
||
Product Description

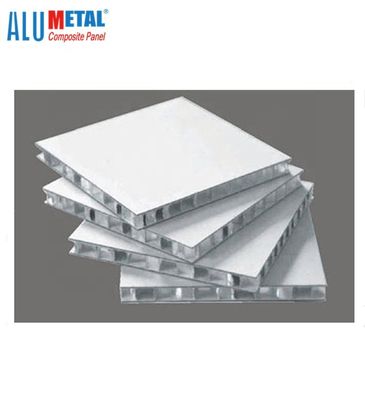

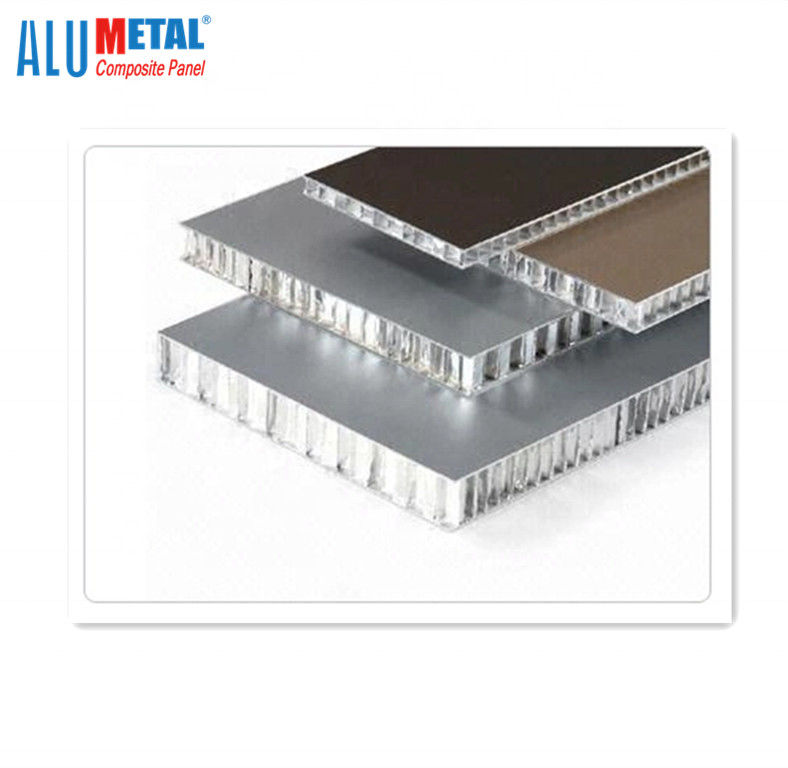

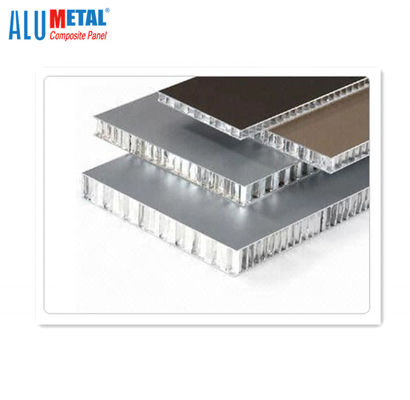

10mm Mill Finish Aluminium Honeycomb Panel For Wall Cladding
Aluminum honeycomb panel is a new type of composite material with a sandwich structure, which is composed of two upper and lower aluminum sheets through adhesive and aluminum honeycomb core. The panels of aluminum honeycomb panels are usually sprayed with fluorocarbon coatings or polyester coatings. Fluorocarbon coatings are widely used outdoors due to their good weather resistance and self-cleaning properties, while polyester coatings are mostly used indoors. Lvjing building materials aluminum honeycomb panels can be made into panels with lighter weight, high strength, good rigidity, and a very flat surface. They can be used in structures, cushions, partitions and decorations, such as curtain walls, building partitions, and sound-absorbing panels. , High-speed trains, ships, cars, etc. The quality of the fluorocarbon aluminum honeycomb panel is not only related to the selected material, but also mainly depends on the bonding quality. The key technical index is the peel strength.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Alumetal Color Chart.pdf
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
