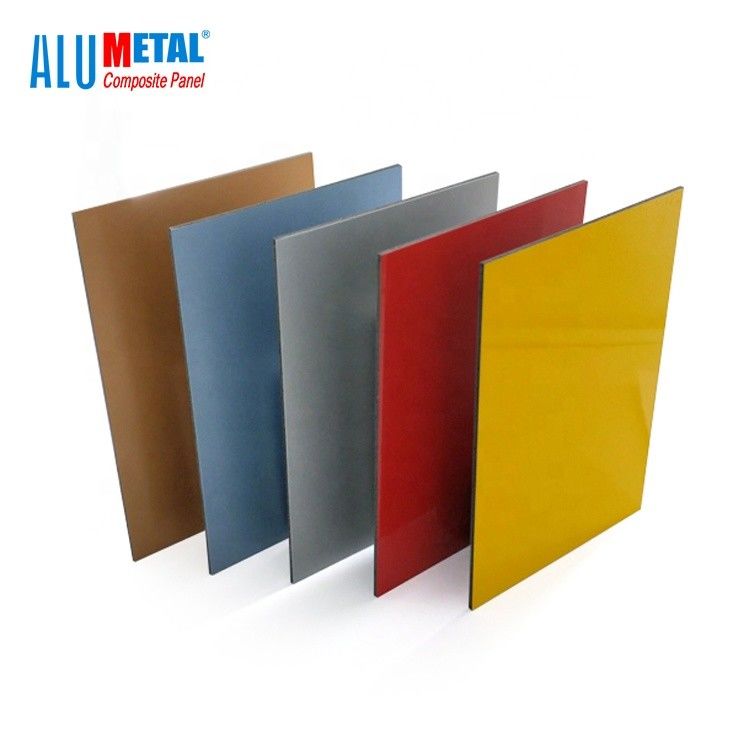

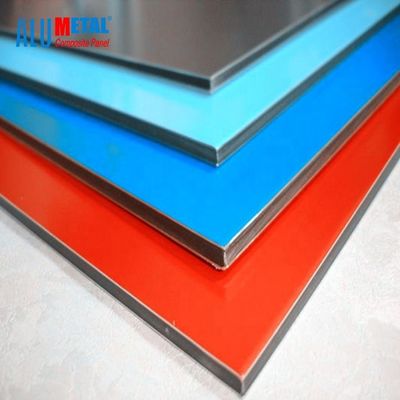

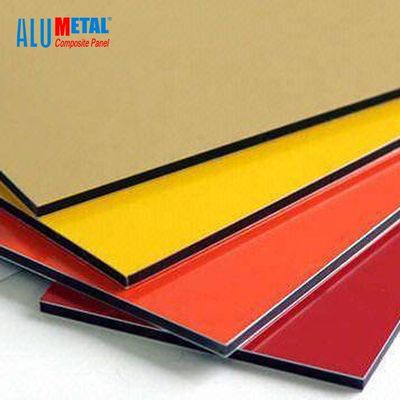

6mm Exterior Mirror ACP PVDF Aluminum Composite Panel Sheet AntiStatic Surface
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
| Model Number: | Alumetal-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | 1.Fumigation wooden pallet package for Alumetal ACP 2.Alumetal ACP loads in bulk in 20ft or 40ft container |
|
Detail Information |
|||
| Product Name: | 6mm Exterior PVDF Aluminium Composite Panel Cladding Wall Panel | Size: | 1220*2440mm |
|---|---|---|---|
| Design Style: | Modern | Function: | Anti-Static, Antibacterial, Mould-Proof |
| Application: | Sports Venues, Building Exterior Wall | Usage: | Indoor |
| Width: | 1220mm 1250mm 1500mm 2000mm | Length: | 2440mm 3000mm And Usually Within 5800mm |
| ACP Aluminum Thickness: | 0.2 Mm To 0.5mm | Panel Thickness: | 2- 15mm |
| High Light: | 6mm PVDF Aluminum Composite Panel,Exterior PVDF Aluminum Composite Panel,mirror acp sheet AntiStatic surface |
||
Product Description
6mm Exterior PVDF Aluminium Composite Panel Cladding Wall Panel
|
Specifications Of Aluminum Composite Panel |
|
|
Normal Width |
1220mm, 1250mm, specially 1500mm custom accepted |
|
Panel Length |
2440mm ,5000mm,5800mm ,normally within 5800mm. |
|
for 20ft container custom accepted |
|
|
Panel Thickness |
2mm 3mm 4mm 5mm 6mm 8mm ... |
|
Aluminum Alloy |
AA1100,AA3003,AA5005 ...(Other Grade On Requirement) |
|
Aluminum Thickness |
0.05mm to 0.50mm |
|
Coating |
PE coating , PVDF coating, NANO, Brush surface, mirror surface |
|
PE Core |
Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
|
Color |
Metal/Matt/Glossy/Nacreous/Nano//Brushed/Mirror/ |
|
Core Material |
HDP LDP Fire-proof |
|
Delivery |
Within two weeks after receiving deposit |
|
MOQ |
500 Sqm per color |
|
Brand/OEM |
Alumetal/Customized |
|
Payment Terms |
T/T, L/C at sight, D/P at sight,Western Union |
|
Packing |
FCL:In bulk;LCL:In Wooden pallet Package;according |
|
Raw Material of Alumetal aluminium composite panel |
|
|
Front side |
Aluminum-alloy sheet coated with flour-carbon resin (PVDF) OR PE |
|
Core |
Nontoxic polyethylene |
|
Back side |
Aluminum-alloy sheet coated with polyester resin painting |
|
Surface finish |
Treated with PVDF OR PE resin rolling roasting coating |
|
Outside |
Protective carrier tape with brand logo |
|
Characteristics of Alumetal aluminium composite panel |
|
Superior strength-to-weight ratio. |
|
Life expectancy of up to 20 years. |
|
Surface smoothness. |
|
Easy Installation. |
|
Attractive Finishes. |
|
Reduces heat and sound transmission. |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
