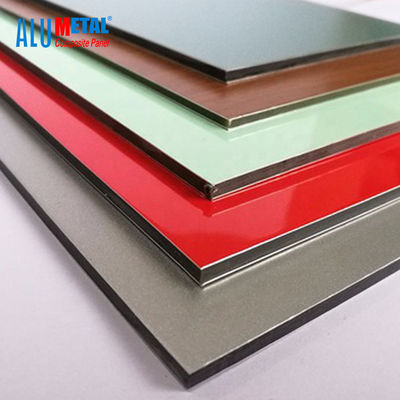

1500x5000 Mm Metal Composite Panel Material Wall Panels 6mm FEVE
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: <br>1)Packing by fumigated wooden pallet <br>2)Packing in bulk <br>3)According to customers' request |
| Supply Ability: | 300000000000000 Square Meter/Square Meters per Year |
|
Detail Information |
|||
| Product Name: | Alumetal 1x2 Meter Aluminium Copper Sheet Alucobond Metal Composite Panel | Size: | 1220x2440,1250 X 2400,1500x5000mm |
|---|---|---|---|
| Application Of Aluminum Composite Panel: | Building Exterior Wall | Color Of Aluminum Composite Panel: | High Gloss/Matt/Metal Color Etc |
| Coating: | FEVE PVDF PE | Width Of Aluminum Composite Panel: | 1220mm/1250mm/1500mm/1570mm/2000mm |
| Length: | Max 6000mm | Core Of Aluminum Composite Panel: | LDPE / Fireproof / A2 Non-combustible |
| Panel Thickness: | 2/3/4/5/6mm | Customized/OEM Service: | UV Printing,Laser Cutting,CNN Cutting,Punching Etc |
| High Light: | 1500x5000 mm Metal Composite Panel,Metal Composite Panel 6mm,metal composite material wall panels FEVE |
||
Product Description

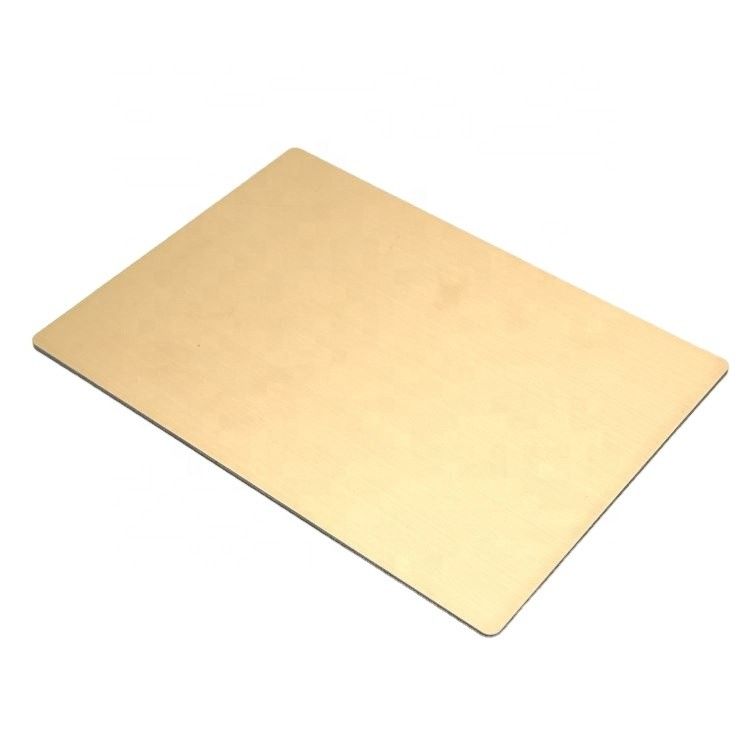

Alumetal 1x 2 Meter Aluminium Copper Sheet Alucobond Metal Composite Panel
Metal composite panel technology can give full play to the respective advantages of the component materials, realize the optimal configuration of each component material resource, save precious metal materials, and realize the performance requirements that a single metal cannot meet. Take the stainless steel-steel composite plate for pressure vessels as an example. The base layer uses general carbon steel (Q245R, Q345R, etc.) with good mechanical properties, and the multi-layer stainless steel (304, 316L, etc.) has good corrosion resistance. The two are usually welded together by explosion, which only takes a few millimeters. The high-priced stainless steel saves a lot of cost and hardly changes the various mechanical properties of the substrate. It can not only replace imports and fill domestic gaps, but also has a wide range of applications, has good economic and social benefits, and is easy to obtain support and help in all aspects. For example, the development of stainless steel composite materials has always been a high-tech project actively supported and advocated by the National Development and Reform Commission and the Ministry of Science and Technology.
|
Specifications Of Copper composite panel |
|
|---|---|
| Product | Copper composite panel |
| Total thickness | 3mm/4mm |
| Metal skin thickness(mm) Red copper or Brass/Al |
0.15/0.21 ,0.2/0.3,0.3/0.5,0.4/0.5,0.55/0.7 |
| Length | 3200mm/Customized |
| Width |
600mm/800mm/1000mm (Red copper) 600mm/1000mm(Brass) |
| Finish | Natural,Brass,clear ,Brushed,Antique,Bronze,Patina |
| Main Feature |
| 1) Anti-bacterial function(Optional) |
| 2) Color change of the natrual copper |
| 3) High flatness, No ripple or warping |
| 4) Light weight |
| 5) Environment protection,Low energy consumption and low CO2 emissions during production. |
| 6) High stability ,low maintenance cost ,environmental-friendly ,safety gurantee,easy processing and highly corrosion-resistant. |
| 7)Has the best malleability among the construction metals ,therefore can be used in varieties of architectural styles. |
| 8)The unique multi-layer composition combines pure copper sheeting with a thermoplastic core, allowing the panels to take almost any shape imaginable. The natural copper is bright red. After long time, they will be changed to dark red, antique color and patina color. It means copper have a lifetime. If there are clear lacquer (anti-finger) on the surface, the color change will be prevented. But the surface oxidation also can be processed by artificial, and then change to different color. |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
