Composite Aluminum Corrugated Panel 3mm PE Coated For Building
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | alumetal |
| Model Number: | Aluminum 3D panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard Seaworthy Wood Pallets,or according to customer's requests. |
| Supply Ability: | 2500000 Square Meter/Square Meters per Month 3d wall panel |
|
Detail Information |
|||
| Product Name: | Building Aluminum Corrugated Panel 3mm-8mm Aluminium Composite Panel | Application: | Office Building Etc |
|---|---|---|---|
| Design Style: | Modern Etc | Surface Treatment: | PE Coated, Printing, PVDF Coated, Etc |
| Total Thickness: | 3mm, 4mm, 5mm, 6mm, 7mm, 8mm | Width: | 1220mm, 1500mm, Etc |
| Length: | 2440mm, Etc | Color: | Customized |
| High Light: | Corrugated Aluminium Composite Sheet,Aluminum Cladding Panel For Building,PE Coated Composite Panel Cladding |
||
Product Description

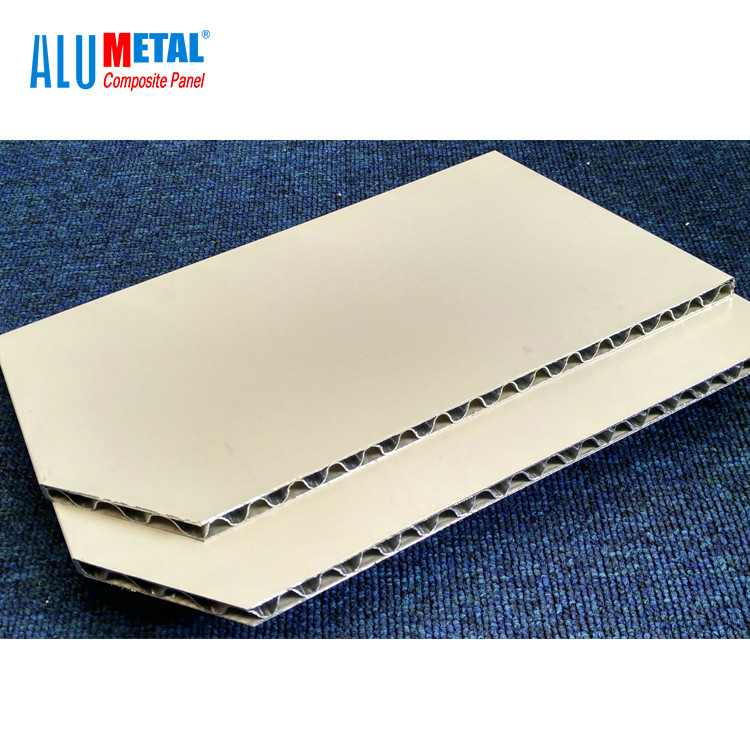

Building Aluminum Corrugated Panel 3mm-8mm Aluminium Composite Panel
Aluminum corrugated panel is fluorocarbon roller coating. Our aluminum corrugated panel has various thickness and width for you to choose. You can contact us right now for designing your customized aluminum corrugated panel. Due to the use of an automatic production line for degreasing, degreasing, cleaning, drying and chroming treatment on the surface of the aluminum plate, the coating thickness of aluminum corrugated panel is uniform and the adhesion is good. Since the heavy load of the surface material is small, and the structural support keel can be reduced, it is more economical.
|
Specifications Of Aluminum 3D panel |
|
| Total thickness | 3mm-8mm |
| Front and bottom aluminum | 0.3mm-0.7mm |
| Width | 1220mm/1500mm |
| Length | 2440mm/Customized |
| 1220x2440mm is the normal specification | |
| Color Check Alumetal color chart |
Metal Colors Series |
| Matt Colors Series | |
| Glossy Series | |
| Brushed Series | |
| Granite Series | |
| Wooden Series | |
| Nano /Spectru/Nacreous Series | |
| Customized color can be matched as sample or Ral and Pantone color code |
|
| 5 Material Advantage | |
| While the thickness of 1 mm PE protective film, has played a very good protection effect of the decorative surface, to ensure the normal installation, transport, lifting, processing is not subject to abuse damaged! | |
| product surface use international famous brand PPG ,Beckers,fluorine carbon baking paint combined with 2 or 3 3 drying roller coating process of coating.15 years gurantee of quality letter can be send with each batch of product. | |
| products of indoor surface chosen for high-performance polyester baking paint combined with 1 or 2 2 baking roller coating process of coating.10years gurantee of quality letter can be send with each batch of product . | |
| With dupont polymer bonded composite material, to ensure the higher product of Alumetal binding stability and excellent bonding strength. | |
| Aluminum with large domestic aluminum group alloy aluminum, good alloy state and excellent performance, to ensure top Alumetal quality as a whole. |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
FAQ
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
