3mm Acm Exterior Fireproof Aluminum Composite Panel 1570mm Curtain Wall Colours FEVE Coating
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Certification: | CE/SGS/ISO9001 |
| Model Number: | Alumetal Fire Proof ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 800 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | Qualified A2&B1 Fireproof Aluminum Composite Panel For Curtain Wall Exterior Cladding Project | Size: | 1500 Mm X 4000 Mm |
|---|---|---|---|
| Surface Treatment: | Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated | Application: | Building Exterior Wall |
| Width: | 1220mm/1250mm/1500mm/1570mm/2000mm | Length: | Max 6000mm |
| Panel Thickness: | 2/3/4/5/6/8mm | Aluminum Thickness: | 0.03-0.5mm |
| Coating: | PE PVDF FEVE ANODIZED | Core Material: | Fire Retardant Mineral |
| High Light: | 3mm Fireproof Aluminum Composite Panel,Fireproof Aluminum Composite Panel 1570mm Curtain Wall,acm exterior panels colours FEVE Coating |
||
Product Description

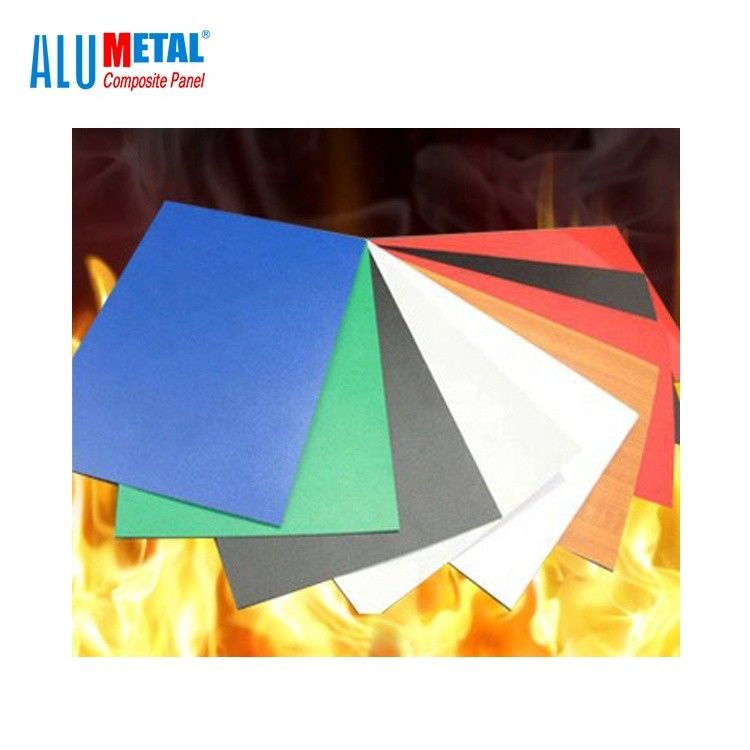

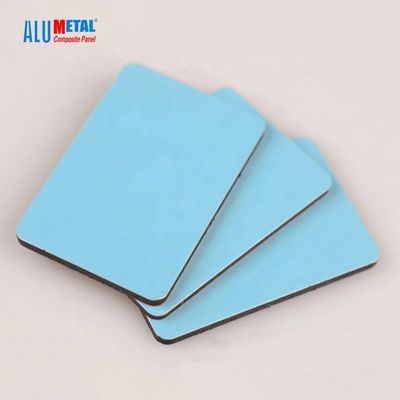

Qualified A2&B1 Fireproof Aluminum Composite Panel For Curtain Wall Exterior Cladding Project
There are two types of fireproof aluminum-plastic panels, B1 and A2. Class B1 fireproof aluminum composite panel contains: 55%-55% flame retardant. When the B1 board catches fire, it can catch fire after 5 minutes. When the fire leaves the board, the fire on the board will go out after 10 seconds. Class A2 fireproof aluminum composite panel, containing 88%-90% flame retardant, can catch fire after 20 minutes, and extinguish when the fire leaves the panel.
| Specifications Of Alumetal Fireproof Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 2000mm and custom accepted |
| Panel Length | 2440mm , 3000mm, 5000mm,5800mm ,normally within 5800mm. |
| for 20ft container custom accepted | |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm 8mm ... |
| Aluminum Alloy | AA1100,AA3003,AA5005 ...(Other Grade On Requirement) |
| Aluminum Thickness | 0.21mm to 0.50mm |
| Coating | PE coating PVDF coating, NANO, Brush surface, mirror surface |
| Core Material | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color |
Metal/Matt/Glossy/Nacreous/Nano/Brushed/Mirror/ Granite/Wooden |
| Delivery | Within two weeks after receiving deposit |
| MOQ | 300 Sqm |
| Brand/OEM | Alumetal/Customized |
| Payment Terms | T/T, L/C at sight, D/P at sight,Western Union, Sinosure |
| Packing |
FCL:In bulk;LCL:In Wooden pallet Package;according customers’ requirement |
| Raw Material of Alumetal aluminium composite panel | |
| Front side |
Aluminum-alloy sheet coated with flour-carbon resin (PVDF) OR PE roasting painting |
| Core | Nontoxic polyethylene |
| Back side | Aluminum-alloy sheet coated with polyester resin painting |
| Surface finish | Treated with PVDF OR PE resin rolling roasting coating |
| Outside | Protective carrier tape with brand logo |
| Characteristics of Alumetal aluminium composite panel |
| Superior strength-to-weight ratio. |
| Life expectancy of up to 20 years. |
| Surface smoothness. |
| Easy Installation. |
| Attractive Finishes. |
| Reduces heat and sound transmission. |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
