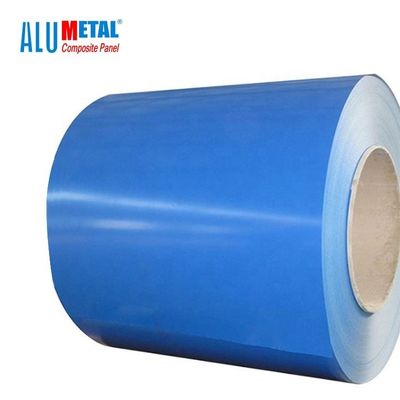

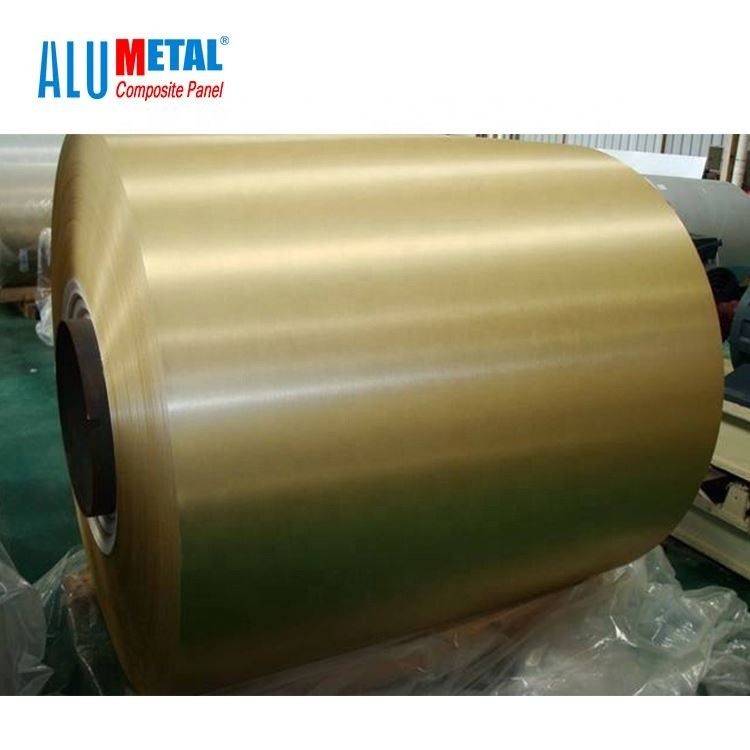

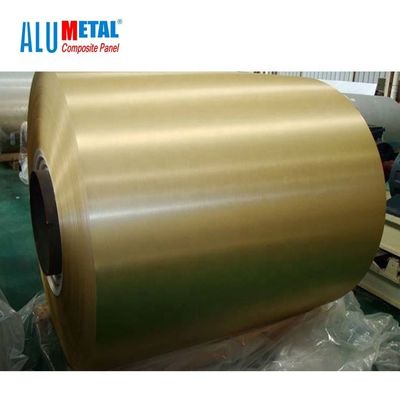

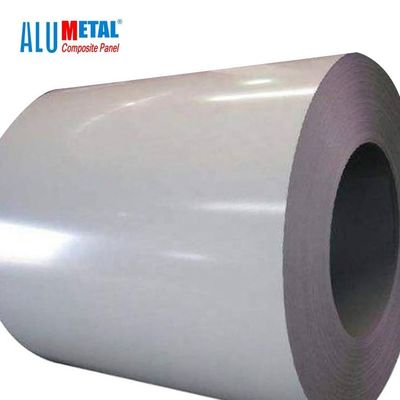

Pre Painted Coated Aluminum Coil Alloy 1050 Gutter 1240mm 10MM Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | Alumetal Aluminum Coil |
| Model Number: | Alumetal Alu Coil |
Payment & Shipping Terms:
| Price: | To be negotiated |
|---|---|
| Packaging Details: | Packing in wooden pallets or paper box. |
| Supply Ability: | 10000 Ton/Tons per Month |
|
Detail Information |
|||
| Product Name: | Hot Sale Alumnimum Coil Sheet Mill Finished AA1100, 1050, 1060, 3003, 5005 Building Materials | Application: | Building, Gutter, Shutters Etc |
|---|---|---|---|
| Other Surface: | Available | Width: | 1000mm - 1260mm, 1230mm, 1240mm, 1250mm, 1260mm, 2600mm |
| Surface Treatment: | Coated | Tolerance: | ±1% |
| Processing Service: | Bending, Decoiling, Welding, Punching, Cutting | Item: | Aluminum Coil |
| Thickness: | 0.06-0.6mm | ||
| High Light: | Coated Aluminum Coil Alloy 1050,Coated Aluminum Coil gutter 1240mm,pre painted aluminium coil 10MM Cutting |
||
Product Description
Hot Sale Alumnimum Coil Sheet Mill Finished AA1100, 1050, 1060, 3003, 5005 Building Materials
Aluminum coil applies in exteriors such as: wall cladding, facades, roofs and canopies, ACP, tunnels, column covers or renovations, etc. In interior applications such as: wall cladding, ceilings, bathrooms, kitchens and balconies, etc. In advertisement and market applications such as: display platforms, signboards, fascia and shop fronts, etc. In transportation and industry, etc.
Applications:
Widely used in manufacturing of products as well as other industrial applications like:
- Products Materials: PP cap stock, the traffic sign, air-conditioner heat and exchangers, food container, household foil, pharmaceutical packing, cigarettes packing etc.
- Building Materials: aluminum curtain wall base plate, ACP, aluminum, ceilings, aluminum sheets, honeycomb panels and aluminum roofing, lighting decoration, household electrical appliances, food package (such as pop can cover & ring-pull), furniture etc.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
