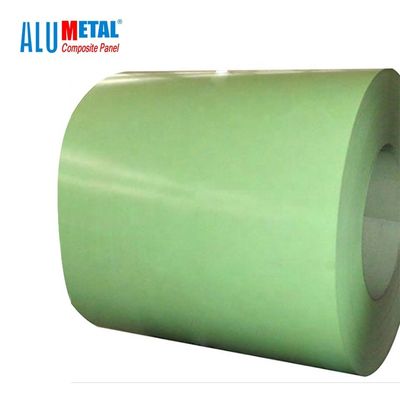

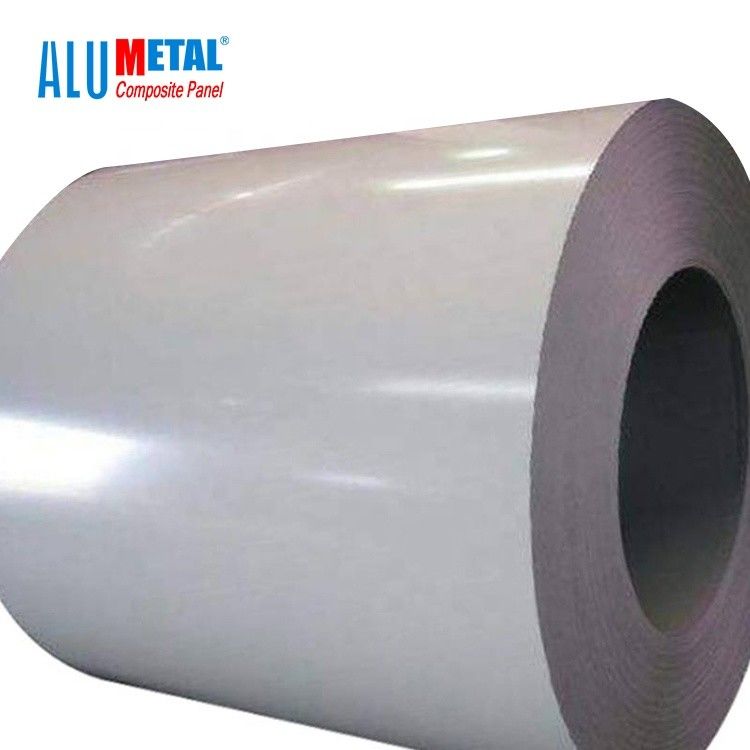

AA1100 H24 2000mm Prepainted Aluminum Coil Aluminium Tube Coil PVDF Coating
Product Details:
| Place of Origin: | shanghai |
| Brand Name: | Alumetal |
| Model Number: | AM018 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests |
|
Detail Information |
|||
| Product Name: | Red Blue White Color AA1100 3003 3004 3105 5006 5052 8011 1000mm Aluminum Alloy Coil | Application: | Roofing Interior Exterior Wall Decoration,facade, Roofing, Interior And Exterior Wall Decoration, Facade, ACP, Etc |
|---|---|---|---|
| Surface Finish: | Matt,glossy,brushed,mirror,wooden, Stone Etc | Width: | <2600 Mm, <2600 Mm |
| Grade: | 3000 Series | Temper: | O - H112 |
| Tolerance: | ±1% | Processing Service: | Bending, Decoiling, Welding, Punching, Cutting |
| Color: | Red,white,black,blue,green,yellow Etomer's Requirementstc Or Custom | Aluminum Alloy: | Aluminium (AA1100, 3003, 3004, 3105, 5006, 5052, 8011, Etc) |
| High Light: | AA1100 prepainted aluminum coil,H24 2000mm prepainted aluminum coil,aluminium tube coil PVDF coating |
||
Product Description
Red Blue White Color AA1100 3003 3004 3105 5006 5052 8011 1000mm Aluminum Alloy Coil
Aluminum Coil has many features such as high definition, rustless, super texture and feel, excellent impact strength, waterproof and easily clean, light weight and easy to process, extremely durable scratch resistant surface, eco-friendly, vibrant colors, excellent fire resistance, super weather resistance, good gloss and smoothness, uniform and plently colors of coating.
Color painted aluminum coil roll is available in hundreds of colors, aluminum casing trim is economical and provides a durable, low-maintenance finish.or we can finished colors as your requst.
In our company have two ways of painted aluminum coils PVDF and PE.
Compared with PVDF, PVDF is mostly used outdoors and has anti-yellow and weather resistance properties. PE is mostly used indoors.for service life, PVDF is about 13 years. PE about 8 years.
Coloring: The aluminum coil has a single-sided coloring and double-sided coloring.
Single-sided coloring: PE single coating 15-18mic, PE double coating 25-28mic, or PVDF double coating 25-28mic
Double-sided coloring: Painted on the front side, painted on one side. Back coloring: 5-10mic. Usually varnish or off-white. Special can do the same color.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
