2440mm 3mm Pvdf Aluminium Composite Panel Anodized For Exterior Wall
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
| Model Number: | Alumetal -PE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | LCL by wooden pallet package FCL by wooden pallet package or bulk package |
| Supply Ability: | 40000 Square Meter/Square Meters per Day Aluminum composite panels |
|
Detail Information |
|||
| Product Name: | 2/3/4/5/6mm Fireproof Aluminum Composite Panel For Exterior Wall Cladding | Size: | 1220*2440mm |
|---|---|---|---|
| Application: | Office Building | Design Style: | Modern |
| Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof | Surface Treatment: | Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated |
| Aluminum Thickness: | 0.06-0.50mm | Certificate: | BV.CE.ISO9001:2000 |
| Characteristic: | Super Peeling Strength | Color: | Customer's Requirements |
| High Light: | pvdf aluminium composite panel Anodized,2440mm pvdf aluminium composite panel,3mm aluminium composite panel Exterior Wall |
||
Product Description

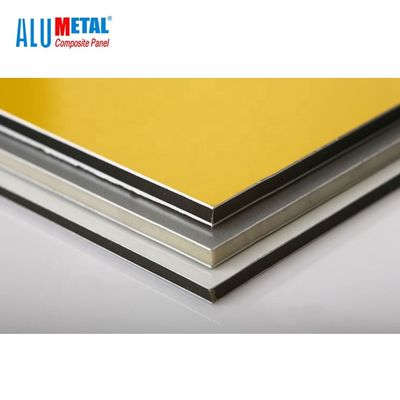

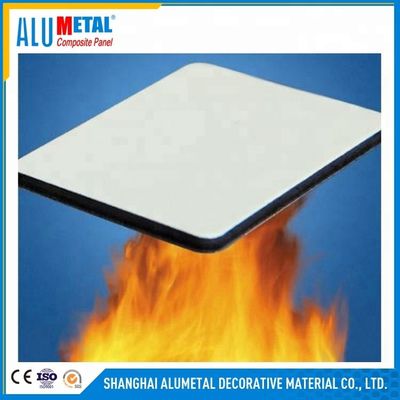

2/3/4/5/6mm Fireproof Aluminum Composite Panel For Exterior Wall Cladding
Alumetal fireproof aluminum composite panel is with light weight, high intensity, and easy to maintain, cut, bend, arch and install. Alumetal fireproof aluminum composite panel's average weight is 3.5 - 5.5 kg/sqm. Alumetal fireproof aluminum composite panel is extremely good resistance against weather, acidity and alkaline, great thermal insulation, acoustic insulation and damping. Alumetal fireproof aluminum composite panel surface is dust-proof treated, smooth, flat and easy to maintain; just a neutral cleaner with water can totally renew the panel. The aluminum surface is tough and the core PE panel is flexible to give the panel high impact resistance.
| Specifications Of Alumetal Fireproof Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 2000mm and custom accepted |
| Panel Length |
2440mm , 3000mm, 5000mm,5800mm ,normally within 5800mm. for 20ft container custom accepted |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm 8mm ... |
| Aluminum Alloy | AA1100,AA3003,AA5005 ...(Other Grade On Requirement) |
| Aluminum Thickness | 0.21mm to 0.50mm |
| Coating | PE coating PVDF coating, NANO, Brush surface, mirror surface |
| Core Material | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color |
Metal/Matt/Glossy/Nacreous/Nano/Brushed/Mirror/ Granite/Wooden |
| Delivery | Within two weeks after receiving deposit |
| MOQ | 600 Sqm per color for PVDF, 500 Sqm for PE |
| Brand/OEM | Alumetal/Customized |
| Payment Terms | T/T, L/C at sight, D/P at sight,Western Union, Sinosure |
| Packing |
FCL:In bulk;LCL:In Wooden pallet Package;according customers’ requirement |
|
Produce Name |
Alumetal Fireproof Aluminum Composite Panel |
|
Total thickness |
3mm-8mm |
|
Front and bottom aluminum |
0.05mm-0.5mm |
|
Width |
1220mm/1250mm/1500mm/2000mm/customized |
|
Length |
2440mm /3000mm/5800mm /customized |
|
1220x2440mm is the standard size |
|
|
Metal Colors Series |
Check Alumetal color chart |
|
Matt Colors Series |
|
|
Glossy Series |
|
|
Brushed Series |
|
|
Granite Series |
|
|
Wooden Series |
|
|
Nano //Nacreous Series |
|
|
Customized color can be matched as sample or Ral and Pantone color code |
|
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
