FEVE H12 A1060 Coated Aluminum Coil 2500MM Trailer Roof Coil 1mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal or Customized |
| Model Number: | Alu coil |
Payment & Shipping Terms:
| Price: | To be negotiated |
|---|---|
| Packaging Details: | Packing: Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests |
|
Detail Information |
|||
| Product Name: | China Factory Alloy Aluminum Coils With Color Coated/matt/high Glossy/marble /wooden | Size: | Customized |
|---|---|---|---|
| Color: | Standard Or Customer's Requirements | Aluminum Alloy: | 1000 Series, 3000 Series, Etc |
| Standard Width: | <2600 Mm | Coil Thickness: | 0.06~1 Mm |
| Coating: | PE, PVDF, FEVE | Feature: | Durability, High Erosion Resistance, Abrasion Resistance, Etc |
| Type: | Brushed, Mirror, PE, PVDF, Glossy, Wooden, Stone | Application: | Roofing, Interior And Exterior Wall Decoration, Facade, ACP, Etc |
| High Light: | FEVE H12 Coated Aluminum Coil,A1060 Coated Aluminum Coil 2500MM,aluminum trailer roof coil 1mm |
||
Product Description

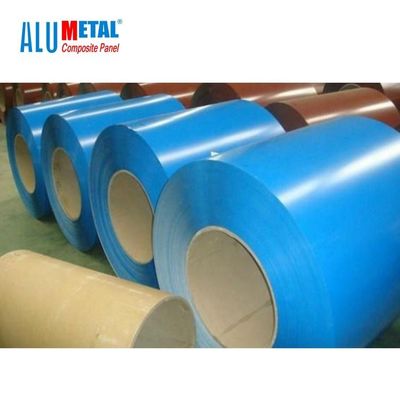

China Factory Alloy Aluminum Coils With Color Coated/Matt/High Glossy/Marble /Wooden
Color Coated Aluminium Foil&Coil for Nano-PVDF aluminium composite panel,for ACP exterior wall cladding,signage aluminium comoated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, Honeycomb panel,Advertising sign,home appliances board and emposite panel.for flat printing sign panel,ACP For Interior Design.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
