FEVE Coating 26mm Coated Aluminum Coil Decoiling H112 Temper
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Alumetal |
| Model Number: | AM015 |
Payment & Shipping Terms:
| Price: | To be negotiated |
|---|---|
| Packaging Details: | Packing: Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests |
|
Detail Information |
|||
| Product Name: | 26mm Coated Aluminum Coil Decoiling Sheet 0.06-1mm | Application: | Wall Decoration,facade, Roofing, Interior And Exterior Wall Decoration, Facade, ACP, Etc |
|---|---|---|---|
| Temper: | O~H112 | Processing Service: | Bending, Welding, Cutting, Decoiling, Punching |
| Aluminum Alloy: | Aluminium (AA1100, 3003, 3004, 3105, 5006, 5052, 8011, Etc) | Standard Width: | <2600 Mm |
| Coil Thickness: | 0.06~1 Mm | Coating: | PE/PVDF/FEVE |
| High Light: | 26mm Coated Aluminum Coil,H112 Temper Coated Aluminum Coil,FEVE Coating Coated Aluminum Coil |
||
Product Description

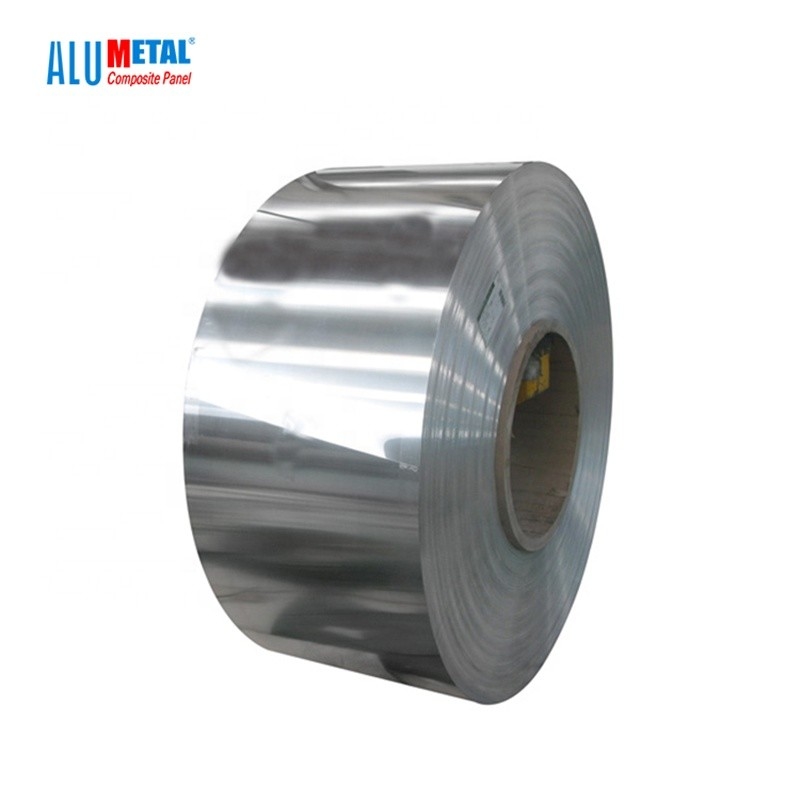

26mm Coated Aluminum Coil Decoiling Sheet 0.06-1mm
Aluminum coil is a kind of metal sheet, which is melted from aluminum ingots, plus different alloys, processed into aluminum coils through casting-rolling or hot rolling, cold rolling, annealing, cross-cutting and other processes. What are the characteristics of aluminum coils: low density and light weight . Easy to handle and can be strengthened. Plasticity and easy processing. preservative. No low temperature brittleness. Good electrical and thermal conductivity. Sound absorption. Resistant to nuclear radiation. Beautiful, the surface can be reprocessed and other advantages. Therefore, it has a wide range of uses, with an annual consumption increase of 7%.
Alloy grades of aluminum coils: One of the grades represents the series of aluminum, the second represents the content of impurities or alloying elements, and the last two represent the content of aluminum (the larger the value, the higher the purity of aluminum). 1×××: Pure aluminum (aluminum content is not less than 99.00%). 1050 106010701000 series are commonly used, and the aluminum content of series 1 reaches more than 99.00%. The last two digits can more accurately determine the aluminum content. For example, the last two Arabic digits of the 1050 series are 50, the aluminum content will reach more than 99.5%, and the aluminum content of the 1060 series will reach more than 99.6%. Used for aluminum composite panel (aluminum thickness 0.025~0.5mm), aluminum veneer (aluminum thickness 2~3mm), aluminum honeycomb panel (aluminum thickness 0.5~1mm), aluminum ceilings and cable trays (0.28~2mm), lampshades and pots (About 0.7mm) and other product uses.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
