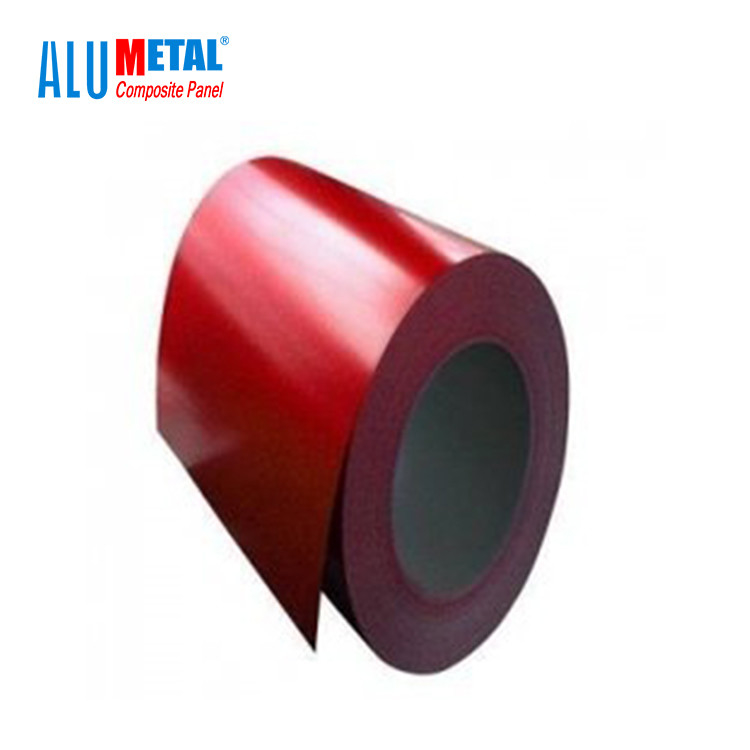

H12 1mm Coated Prepainted Aluminum Coil A1060 2500MM Trailer Roof Coil
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal or Customized |
| Model Number: | Alu coil |
Payment & Shipping Terms:
| Price: | To be negotiated |
|---|---|
| Packaging Details: | Packing: Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests |
|
Detail Information |
|||
| Product Name: | H12 1mm Coated Aluminum Coil A1060 2500MM Trailer Roof Coil | Size: | Customized Size |
|---|---|---|---|
| Color: | Your Requirements | Aluminum Alloy: | 1000 Series, 2000 Series, 3000 Series, Etc |
| Standard Width: | <2600 Mm | Coil Thickness: | 0.06~1 Mm |
| Coating: | PVDF, FEVE, PE | Application: | Roofing, Interior & Exterior Wall Decoration, Facade, ACP, Etc |
| High Light: | 1mm Coated Prepainted Aluminum Coil,H12 Coated Prepainted Aluminum Coil,Prepainted Aluminum Coil A1060 |
||
Product Description
H12 1mm Coated Aluminum Coil A1060 2500MM Trailer Roof Coil
Aluminum sheet is the so-called aluminum coil. After cutting, it can be broken into small rolls, which is convenient for customers to operate and use. It has the effect of anti-corrosion and rust prevention. All in all, it will gradually replace the iron sheet.
Aluminum skin is one of the most commonly used products in aluminum materials. At present, it can produce 1050 series aluminum skin, 1060 series aluminum skin, 1070 series, 1080 series and other series. The product is beautiful and bright. It is very useful in the plumbing industry.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Shanghai Alumetal Decorative Material Co., Ltd. lies in shanghai, a modern metropolis, has produced aluminum composite panel more than 10 years, now we have 11 production lines of manufacturing aluminum composite panel,2 own coating production lines and 2 aluminum sheets production lines. Our products include: Polyester(PE) aluminum composite panel; Fluorocarbon(PVDF)aluminum composite panel, Fire-resistant aluminum composite panel, Self-cleaning, nano-aluminum composite panels,Spectrum aluminum composite panel, Mirror aluminum composite panel, Brushed aluminum composite panel,Wooden grain board,Granite grain board, Signage adverting aluminum composite panel, Embossed aluminum composite panel, and coated aluminum coils, aluminum sheets, with capability of the annual output more than 10 million square meters.
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
