SGS Painted Coated Aluminum Coil H22 Stucco Embossed Heat Resistant
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ALUMETAL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500SQM |
|---|---|
| Packaging Details: | Packing in bulk; Packing in wooden fumigated pallets; Packing as customer requests |
| Delivery Time: | To be negotiated |
| Payment Terms: | Western Union, T/T, Visa, Mastercard, Online Transfer, etc |
|
Detail Information |
|||
| Product Name: | Heat Resistant H22 Stucco Embossed SGS Painted Aluminum Strip Coil | Application: | Decoration, Kitchenware |
|---|---|---|---|
| Model Number: | Alumetal -coil | Alloy Or Not: | Alloy |
| Color: | RAL Color Customized | Certification: | SGS, CE |
| Surface Treatment: | Coated | Width: | 20-2650mm, 20mm - 4300mm |
| High Light: | SGS Painted Aluminum Strip Coil,H22 Stucco Embossed Coated Aluminum Coil,Heat Resistant Embossed Aluminium Coil 20mm |
||
Product Description

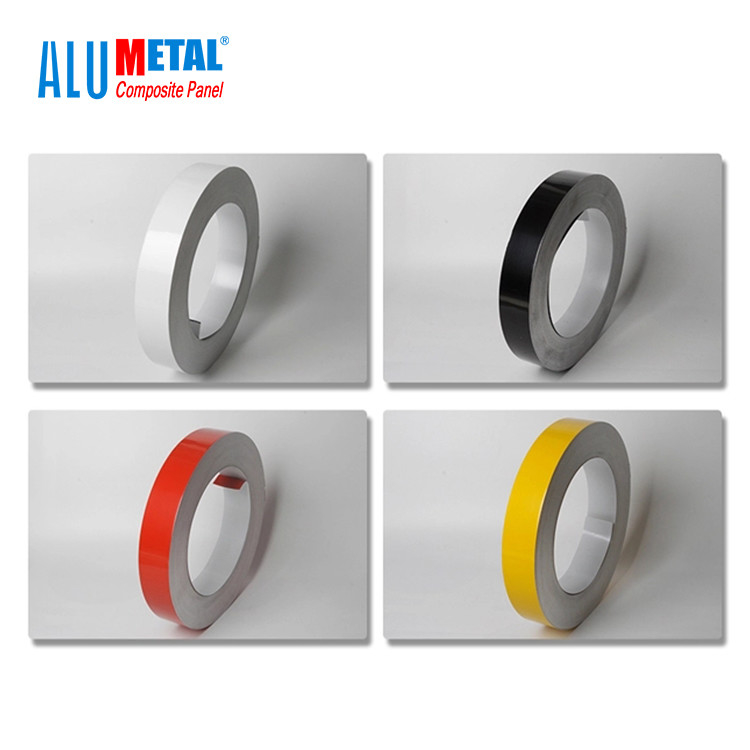

Heat Resistant H22 Stucco Embossed SGS Painted Aluminum Strip Coil
Colored aluminum strip coil has several features such as anti-corrosion, heat resistant, excellent weather proof durability, stable color and gloss, anti-impact, good mechanical processing performance, abrasion resistant, etc. We deal in a wide array of Aluminum Coils, like Plain Aluminium Coil, Pre-coated color Aluminium Coil,Stucco Embossed Aluminium Coil etc, which are widely used in manufacturing of products as well as other industrial applications. The range of our Aluminum Coils is made from quality tested aluminum alloy confirming to all the quality parameters. We are a premium manufacturer and business partner of Aluminum Coils from China.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color |
Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
