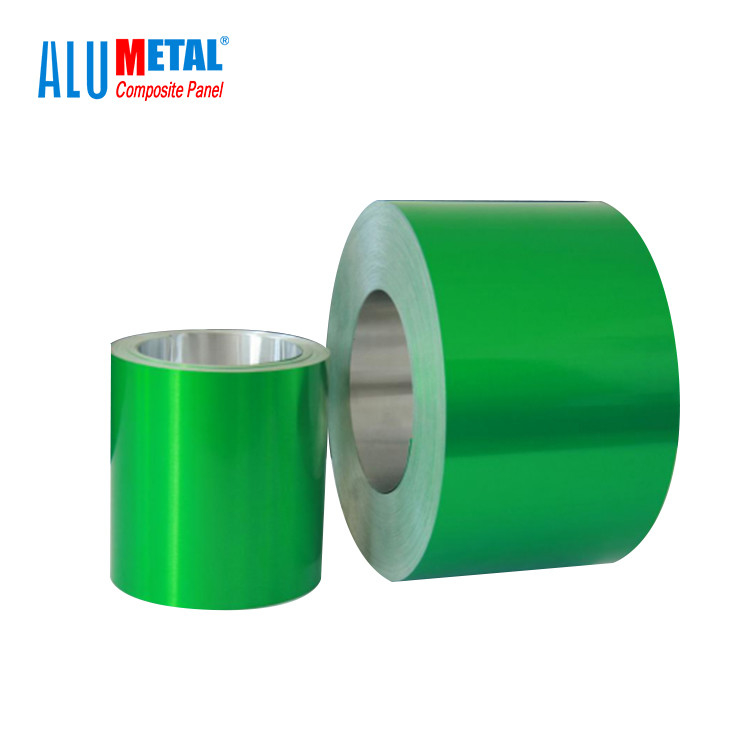

1570mm Prepainted Aluminum Sheet Coil Strip H112 Punching
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Square Meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | aluminum composite panel is with Standard Seaworthy Wood Pallets,or according to customer's requests. |
| Supply Ability: | 2500000 Square Meter/Square Meters per Month aluminum composite panel |
|
Detail Information |
|||
| Product Name: | 1570mm Prepainted Aluminum Strip Sheet Coil H112 Punching | Grade: | 1000, 2000, 3000 Series, Etc |
|---|---|---|---|
| Temper: | O~H112 | Tolerance: | ±1% |
| Processing Service: | Bending, Welding, Punching, Decoiling, Etc | Color: | Customer's Requirements Or Standard, Etc |
| Application: | Decorative Material, Etc | Standard Width: | 1220/1250/1500/1570mm, Etc |
| High Light: | Aluminum Strip Sheet Coil 1570mm,H112 Punching Aluminum Sheet Coil,Prepainted Coated Aluminum Sheet Coil |
||
Product Description
1570mm Prepainted Aluminum Strip Sheet Coil H112 Punching
The density of the aluminum strip coil is 2.71, and the thickness multiplied by 2.71 is equal to the weight per square, which is more cost-effective compared to the calculation. Aluminum coil's appearance is smooth, the greasy dirt will not stick, and it also has a certain aesthetic effect. Long-term use is more anti-corrosion and rust than iron, and it will not rust. The aluminum strip coil is very soft during construction and operation, and can be easily bent and wound, saving unnecessary labor.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Shanghai Alumetal Decorative Material Co., Ltd. lies in shanghai, a modern metropolis, has produced aluminum composite panel more than 10 years, now we have 11 production lines of manufacturing aluminum composite panel,2 own coating production lines and 2 aluminum sheets production lines. Our products include: Polyester(PE) aluminum composite panel; Fluorocarbon(PVDF)aluminum composite panel, Fire-resistant aluminum composite panel, Self-cleaning, nano-aluminum composite panels,Spectrum aluminum composite panel, Mirror aluminum composite panel, Brushed aluminum composite panel,Wooden grain board,Granite grain board, Signage adverting aluminum composite panel, Embossed aluminum composite panel, and coated aluminum coils, aluminum sheets, with capability of the annual output more than 10 million square meters.
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
