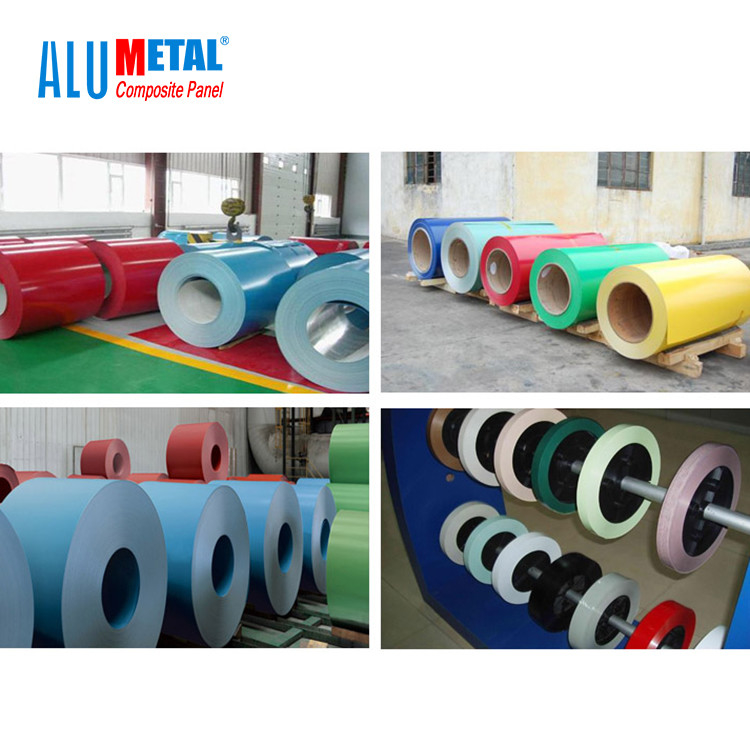

Nontoxic Polyethylene Prepainted Coated Aluminum Coil Strip 6mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
| Model Number: | Aluminum coil |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Tons |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | wooden pallet |
|
Detail Information |
|||
| Product Name: | Nontoxic Polyethylene Prepainted Coated Aluminum Strip Coil 6mm | Width: | <1800mm |
|---|---|---|---|
| Core Material: | Nontoxic Polyethylene | Panel Thickness: | 3mm 4mm 5mm 6mm |
| Standard Size: | 1220mm*2440mm*3mm/4mm/5mm/6mm | Surface Treatment: | Coated |
| Temper: | O - H112 | Aluminum Alloy: | 1100 / 3003 |
| Standard Width: | 1220/1250/1500/1570 | Coil Thickness: | 0.08-0.5mm |
| High Light: | 6mm Prepainted Coated Aluminum Strip Coil,Nontoxic Painted Aluminium Coil,3003 Polyethylene Coated Aluminium Coil |
||
Product Description
Nontoxic Polyethylene Prepainted Coated Aluminum Strip Coil 6mm
The roller paint contains active chemical molecules to promote the formation of a protective layer on the surface of the material. Active chemical molecules are stable, easy to recycle, and meet environmental protection requirements. Corrosion resistance. Because of its dense surface oxide film, it has the characteristics of strong adhesion, oxidation resistance, acid resistance, alkali resistance, corrosion resistance, corrosion resistance, and UV resistance.
| Alloy | Thickness | Width | Temper |
| A1050, A1060, A1070, A1100 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| A3003, A3105, A3004 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A5052, A5005, A5083, A5754 | 0.2MM~200MM | 10MM~2500MM | O, H14, H18, H24, etc |
| A6061, A6082, A6063 | 0.2MM~200MM | 10MM~2500MM | T4, T6, T651, etc |
| A8011 | 0.2MM~200MM | 10MM~2500MM | O, H12, H22, H14, H16, H18, H24, H26, etc |
| Production Process | Cold Rolled, Hot Rolled |
| Internal Diameter | 150mm, 305mm, 405mm, 505mm or per request |
| Coil Weight | 2-4 tons |
| Standard | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Color | Alumetal color and customized color as sample, Ral or Pantone |
| Color Standard | E<2 or it is not obvious by eyeballing |
| Coating | PE, PVDF, Epoxy |
| Coating Thickness | PVDF>=25 micron POLYESTER>=18 micron |
| Coating Adhesive | Not lower than first grade impact: no any crack (50kg/cm, ASTM D-2794:1993) |
| MOQ | 5~8 Tons (According to specification) |
| Delivery Time | Future goods: 20~30 work days, ready stock: 7-10 days. |
| Quality of Material | Totally free from detects like white rust, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Pencil Hardness | >2HB |
| Bend Strength | >100 times |
| Boiling Point | No any distortion and color change (in the 99 more or less 1 degree water, then cooling 2 hours) |
| Corrosive | Surface deep in the 5% muriatic acid and 5% NaCl, interior deep in the 2% muriatic acid and 2% NaCl, after 48 hours, no change |
| Package | Export wooden pallets, craft paper. The bundle weight not exceed 2 MT, Loading: by 1x20GP |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1. What is the minimum order quantity?
500Sq M for aluminium composite panel for one color with 1220 mm*2440 mm size.
Q2. What is your terms of payment?
T/T 30% deposit in advance; the balance paid should be paid according to the copy of B/L.
Q3. How about your delivery time?
Generally, it will take 15to 20days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Q5. Why can I trust you and place order with you?
1. We are manufacture and supplier of aluminum composite panel in china with over 10 years's experience.
2. We keep fastest delivery. Since we have perfect production equipment.
