Alumetal Silver Mill Finished Aluminum Honeycomb Core Sandwich Panel For Solar Industry
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | 0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm | Length: | Customized Length |
|---|---|---|---|
| Size: | Customized Size | Panel Thickness: | 4mm-500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof/A2 Non-combustible | Coating: | PVDF/PE/Mill Finished, Etc |
| High Light: | Mill Alumetal Honeycomb Panel,Aluminum Honeycomb Core Sandwich Panel,Solar Industry Aluminum Honeycomb Panel |
||
Product Description

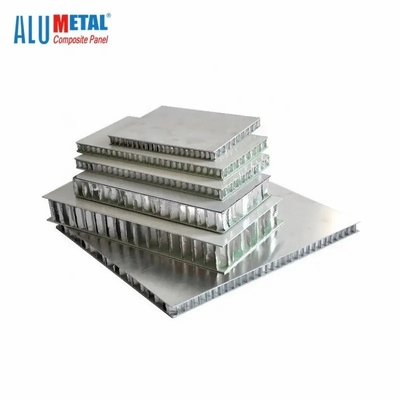

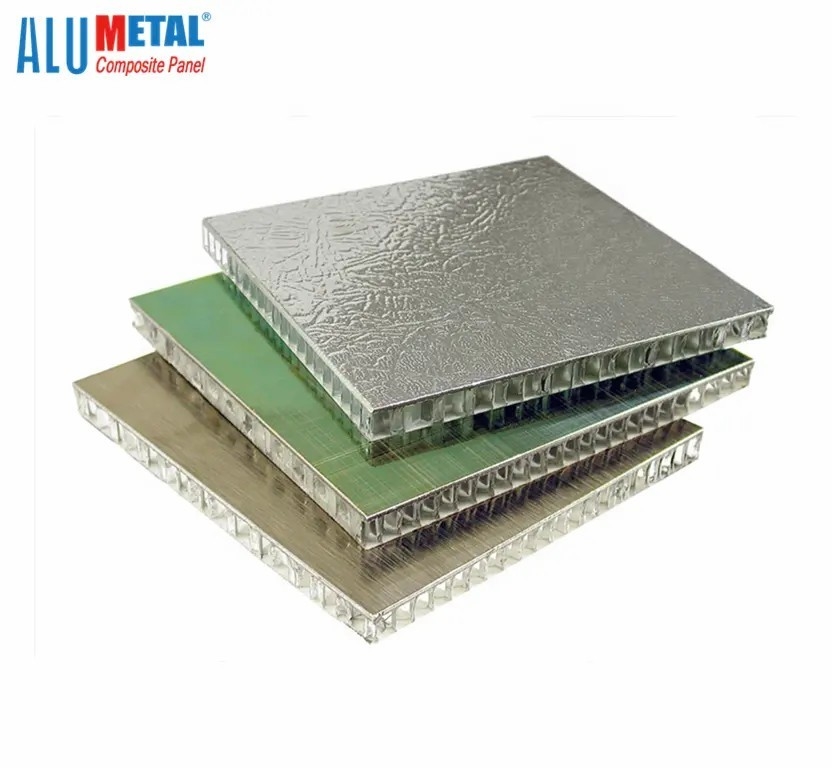

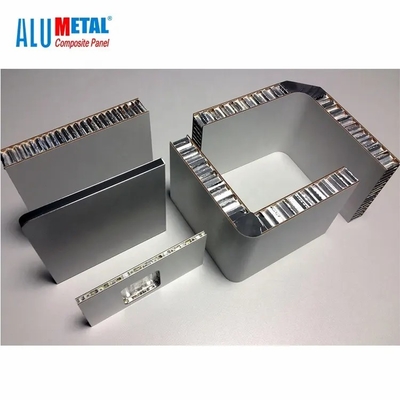

Alumetal Silver Color Mill Finished Aluminum Honeycomb Core Sandwich Panel for Solar Industry
Alumetal Silver Color Mill Finished Aluminum Honeycomb Core Sandwich Panels are specifically designed for the solar industry, providing lightweight, durable, and high-performance solutions for solar applications.
Lightweight and High Strength: Aluminum honeycomb core sandwich panels offer exceptional strength-to-weight ratio due to the honeycomb structure. The honeycomb core provides excellent structural integrity while keeping the panel lightweight, making it ideal for applications where weight reduction is crucial.
Weather Resistance: The aluminum construction, coupled with the honeycomb core and protective coatings, provides excellent resistance to weather elements, including UV radiation, moisture, and temperature variations. This ensures long-term durability and performance in outdoor solar installations.
Easy Installation and Maintenance: The lightweight nature of these panels simplifies installation, reducing labor costs and time. Additionally, their low maintenance requirements make them a practical choice for solar industry applications.
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
