A2 Fire Proof Aluminum Honeycomb Panel For Boat Interior Wall Material
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | 0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm | Length: | Customized Length |
|---|---|---|---|
| Size: | Customized Size | Panel Thickness: | 4mm-500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof/A2 Non-combustible | Coating: | PVDF/PE/Mill Finished, Etc |
| High Light: | Fire Proof Aluminum Honeycomb Panel,Boat Interior Wall Aluminum Honeycomb Panel,A2 Aluminum Honeycomb Core Sandwich Panel |
||
Product Description

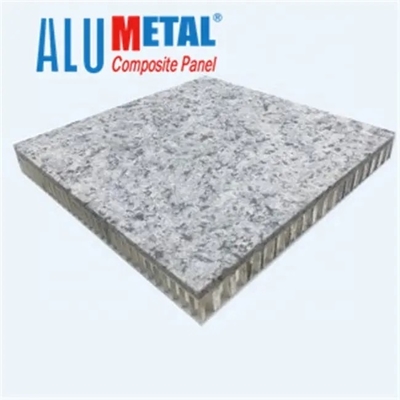

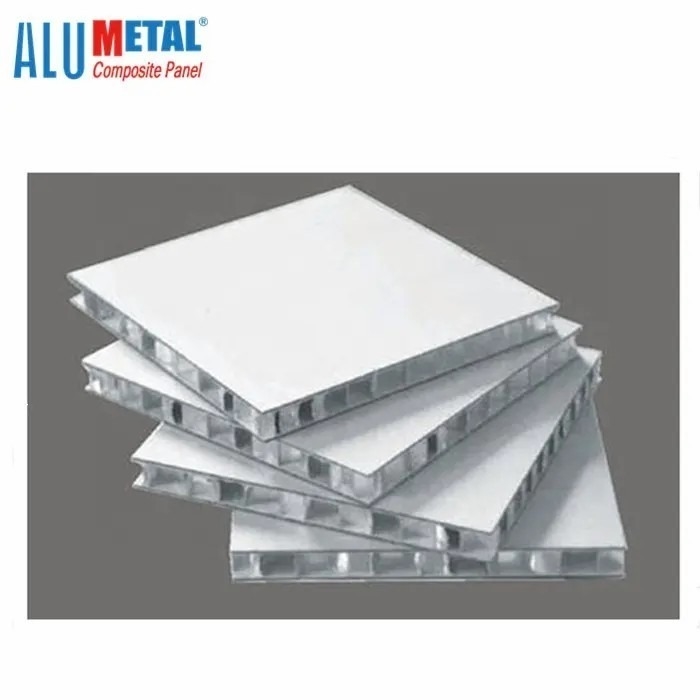

Aluminum honeycomb panel for boat interior wall material A2 fire proof
Aluminum honeycomb panels are a popular choice for boat interior wall materials due to their lightweight yet strong construction. When it comes to fireproofing, A2 fireproof rating is considered one of the highest levels of fire resistance for building materials.
When searching for suppliers or manufacturers, consider looking for those specialized in marine or boat interior materials. They can provide you with specific options for aluminum honeycomb panels that meet A2 fireproof requirements. Be sure to inquire about the specifications, certifications, and test reports to verify the fire performance of the panels.
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
