Corrosion Resistant Aluminum Honeycomb Panel 0.5 - 3.0mm For Outdoor Use
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | 0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm | Length: | Customized Length |
|---|---|---|---|
| Size: | Customized Size | Panel Thickness: | 4mm-500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof/A2 Non-combustible | Coating: | PVDF/PE/Mill Finished, Etc |
| High Light: | Corrosion Resistant Aluminum Honeycomb Panel,Outdoor Aluminum Honeycomb Panel,3.0mm Honeycomb Aluminum Panels |
||
Product Description

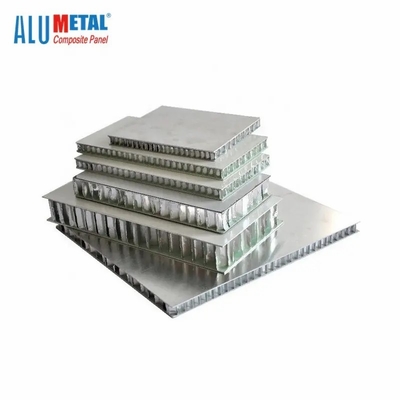

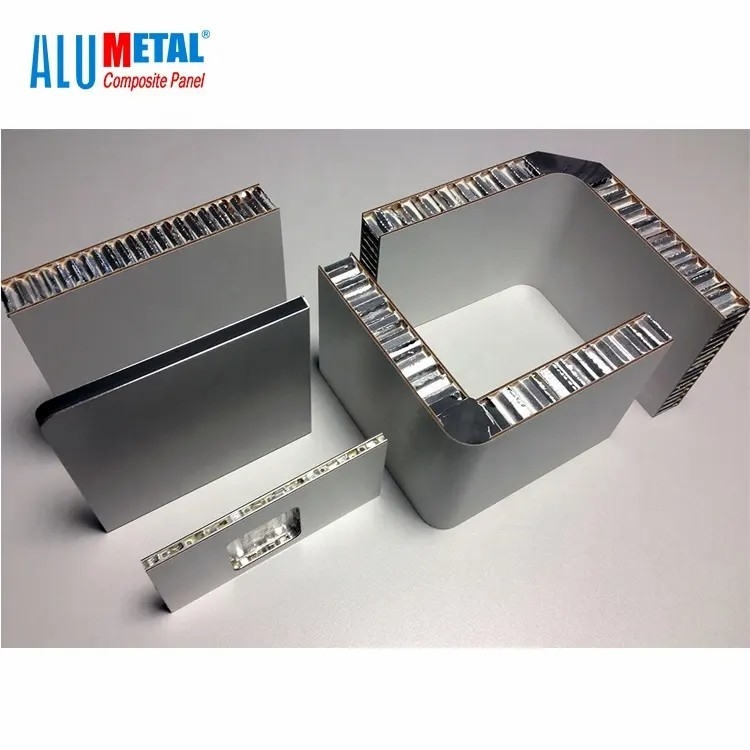

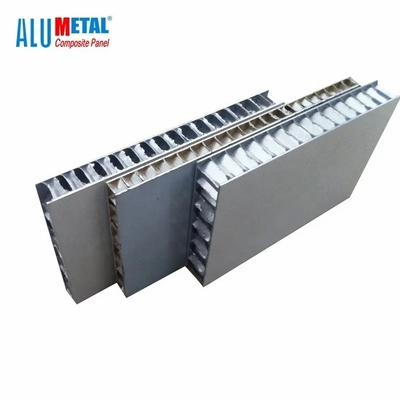

Corrosion-Resistant Aluminum Honeycomb Panel for Outdoor Use
Corrosion-resistant aluminum honeycomb panels are an excellent choice for outdoor applications where durability and protection against the elements are required. These panels are specifically designed to resist corrosion and offer numerous advantages in terms of strength, lightweight construction, and resistance to moisture and UV radiation.
Aluminum honeycomb panels are lightweight yet structurally rigid, making them an ideal choice for outdoor applications. The honeycomb core provides exceptional strength and stiffness while significantly reducing the overall weight of the panel compared to solid aluminum sheets. This lightweight nature facilitates easier installation, transportation, and reduces the load on the supporting structures.
Aluminum honeycomb panels are known for their durability and longevity, even in outdoor environments. The corrosion resistance, combined with the inherent strength of the honeycomb structure, ensures that these panels can withstand the test of time without compromising their performance. This makes them suitable for applications that require long-term reliability and minimal maintenance.
Many corrosion-resistant aluminum honeycomb panels also possess excellent fire resistance properties. They can be manufactured with fire-retardant materials and meet relevant fire safety standards, making them suitable for applications where fire protection is critical, such as building exteriors and transportation vehicles.
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
