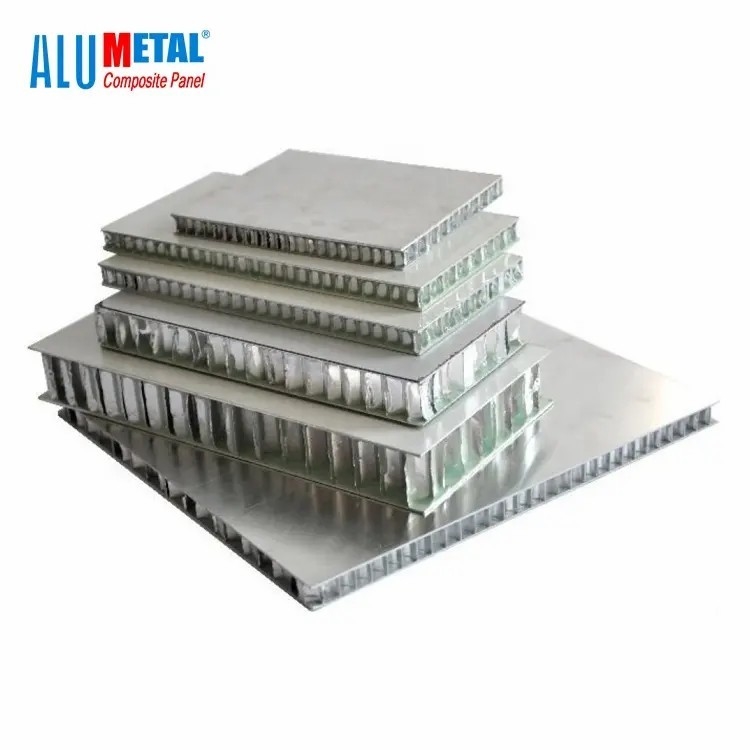

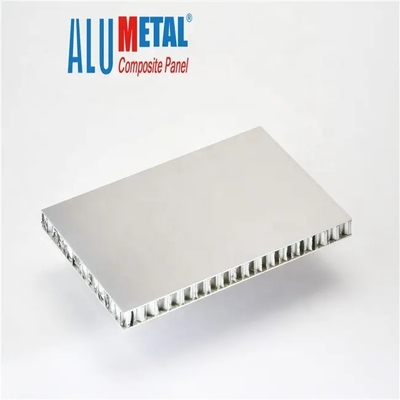

15mm 25mm 10mm PVDF Aluminum Honeycomb Core Sandwich Panel For Aerospace
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | 0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm | Length: | Customized Length |
|---|---|---|---|
| Size: | Customized Size | Panel Thickness: | 4mm-500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof/A2 Non-combustible | Coating: | PVDF/PE/Mill Finished, Etc |
| High Light: | Aerospace Aluminum Honeycomb Core Sandwich Panel,PVDF Aluminum Honeycomb Panel,10mm Aluminum Honeycomb Core Sandwich Panel |
||
Product Description
15mm.25mm 10mm pvdf aluminum honeycomb core sandwich panel for aerospace
A 15mm, 25mm, or 10mm PVDF aluminum honeycomb core sandwich panel for aerospace refers to a specialized type of composite panel designed for aerospace applications.
The mentioned thicknesses, 15mm, 25mm, and 10mm, represent the overall thickness of the sandwich panel. These thicknesses are selected based on specific requirements and design considerations for aerospace applications. Thicker panels generally provide higher strength and rigidity, while thinner panels offer weight savings.
Aerospace-grade composite panels, such as PVDF aluminum honeycomb core sandwich panels, are commonly used in aircraft interior components, cabin partitions, flooring, overhead compartments, and other structural elements. These panels help reduce the overall weight of the aircraft while maintaining structural integrity and meeting stringent safety and performance requirements.
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
