10mm 1250mm Plastic Aluminum Honeycomb Panel Board Sheets LDPE Core
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | Alumetal Low Weight 4mm 10mm 25mm Aluminum Honeycomb Core Panel | Size: | 1020,1220,1250,1300,1500,1575mm,Max 2m,Custom Size |
|---|---|---|---|
| Panel Thickness: | 4~500mm | Skin Thickness: | 0.5-3.0mm |
| Color/Surface Option: | Metal,Matte,High Glossy,Nano, Brushed, Granite,Wooden Etc | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Length: | Max 10000mm,Custom Size | Core: | LDPE / Fireproof / A2 Non-combustible |
| Coating: | PVDF/PE,or Without Coating Mill Finished | Customized Service: | Accepted |
| High Light: | 10mm Aluminum Honeycomb Panel,1250mm Aluminum Honeycomb Panel,plastic honeycomb board sheets LDPE core |
||
Product Description

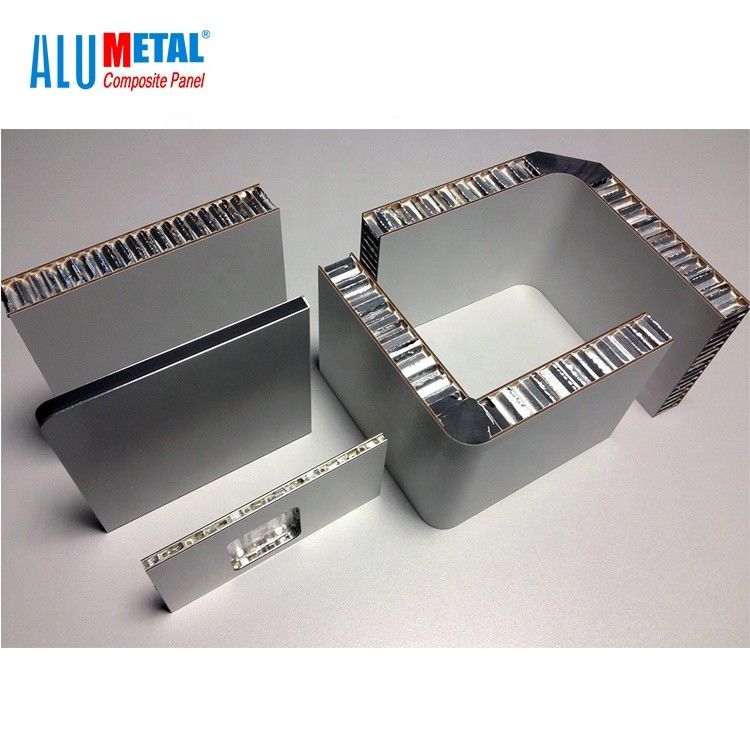

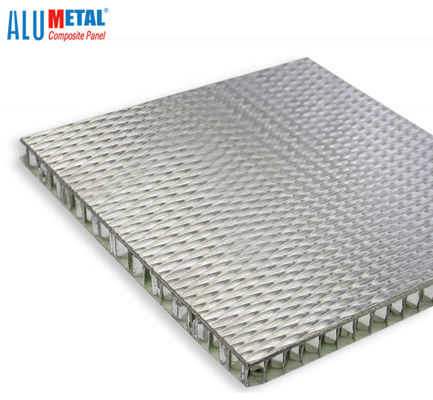

Alumetal Low Weight 4mm 10mm 25mm Aluminum Honeycomb Core Panel
Aluminum honeycomb panel is a plate made of two thinner panels firmly bonded on both sides of a thicker honeycomb core material, also known as honeycomb sandwich structure. Warmly Welcome to Contact us for Getting Our Color Chart Full Catalog.We Have Various Kinds of Choice for You! Such as:Matt,Glossy,Metal,Mirror,Brush,Wooden,Nano,Spectrum,Granite,Stone Marble etc.Any Color is Available!
OEM/Customized Service is Provided
We have rich experience for customized service,such as: UV pritning,laser cutting,CNC cutting,screen printing,punching,blanks.We will customize the product according to your demands,any unique design is welcomed!
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
