A2 2.5mm 2200mm Aluminium Honeycomb Composite Panel Sheet Outdoor 4x8 Sheet Mould Proof
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Alumetal |
| Model Number: | ALUMETAL AHP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: Packing with plywood pallets |
|
Detail Information |
|||
| Product Name: | Outdoor A2 Grade Aluminum Honeycomb Core Sandwich Panels | Size: | 4 X 8ft Or Custom |
|---|---|---|---|
| Design Style: | Contemporary | Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof |
| Surface Treatment: | Anodized, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated | Width: | Max 2200mm |
| Length: | Max 10000mm | Core: | Aluminum Honeycomb Core |
| Surface: | Flat/Embossed | Color: | Customize |
| Fire Resistance: | A2 Grade | Compress Flatwise Stress: | 1.05 MPa - 20 MPa |
| High Light: | A2 aluminium honeycomb composite panel 4x8,2200mm aluminium honeycomb composite panel Outdoor,2.5mm aluminium sheet Mould Proof |
||
Product Description

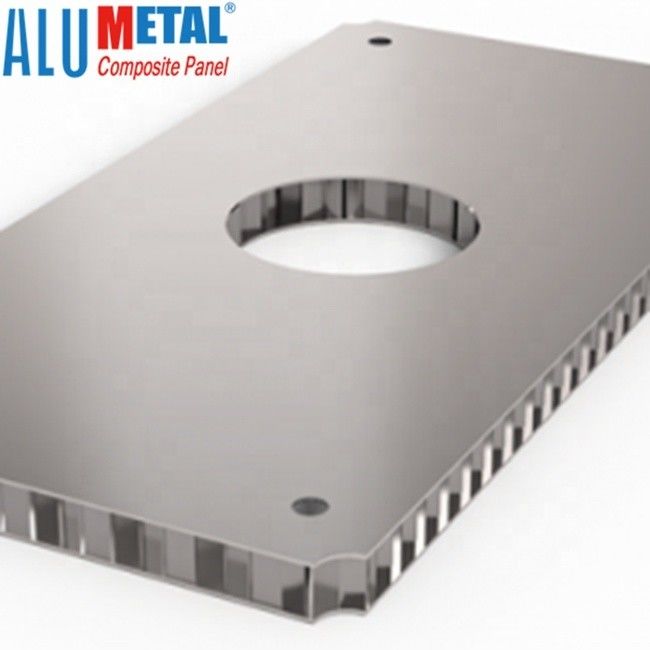

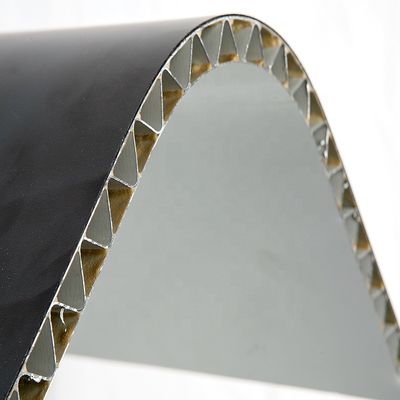

Outdoor A2 Grade Aluminum Honeycomb Core Sandwich Panels
Aluminum honeycomb panel is suitable for civil construction, vehicle and ship decoration, etc. Aluminum honeycomb panels are also used to make aviation and aerospace materials. The entire processing process of aluminum honeycomb panels is completed in a modern factory. The process of processing aluminum honeycomb panels uses hot press forming technology. High heat conduction between the aluminum skin and the honeycomb, so the thermal expansion and contraction of the inner and outer aluminum skin are synchronized. There are small holes in the honeycomb aluminum skin, so that the gas in the plate can flow freely. The slidable mounting buckle system will not cause structural deformation during thermal expansion and contraction.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
