3" H18 Polypropylene Honeycomb Core FRP Panels Acm Signage Material 5mm Aluminium Sheet
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Alumetal |
| Model Number: | ahp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Standard export wooden case |
| Supply Ability: | 40000 Square Meter/Square Meters per Day |
|
Detail Information |
|||
| Product Name: | Alumetal Honeycomb Box Aluminum Honeycomb Panel Board Coated Plate | Application: | Sports Venues, Building ,decoration Marine Signage |
|---|---|---|---|
| Thickness: | 1/8" To 3" Standard | Length: | Up To 190" Standard |
| Width: | 48" And 60" Standard | Protective Film: | OEM Accepted |
| Size: | 1220MMX2440MM | Color: | Customized |
| Coating: | Clear Epoxy Primer Mill Finish Bond And/or Paint Ready | Certificate: | ASTM |
| High Light: | 3" polypropylene honeycomb core frp panels,H18 polypropylene honeycomb core frp panels,acm signage material 5mm aluminium sheet |
||
Product Description

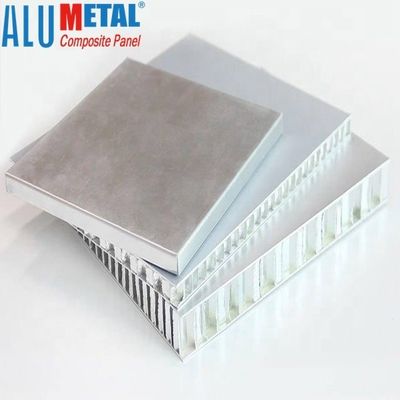

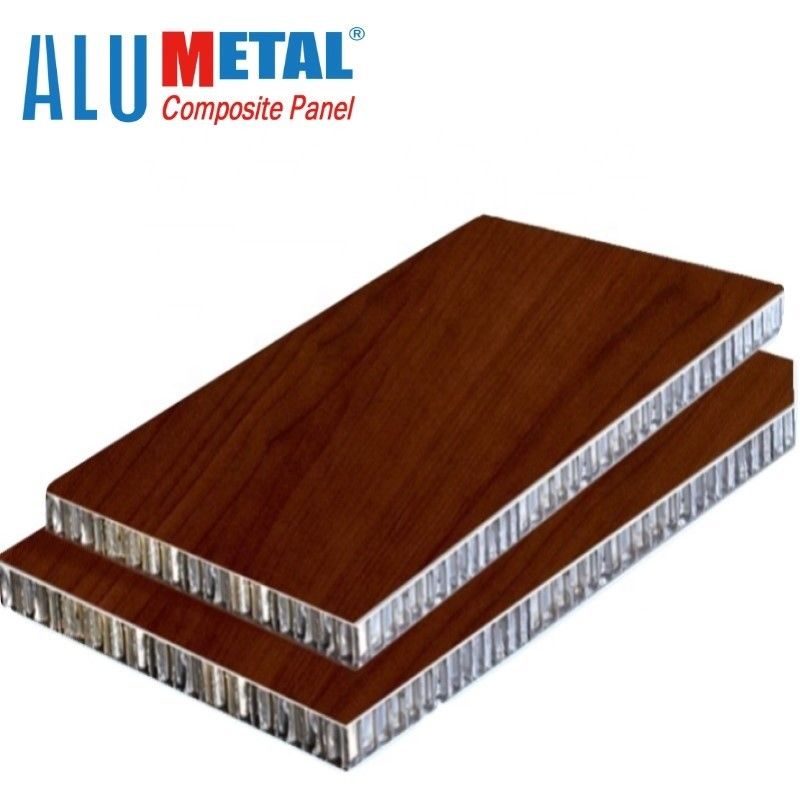

Alumetal Honeycomb Box Aluminum Honeycomb Panel Board Coated Plate
The aluminum honeycomb panel has a honeycomb structure as the core. The natural hexagonal honeycomb is the source of inspiration for aluminum honeycomb panels. Honeycomb aluminum panels have become a new type of energy-saving, environmentally friendly and healthy materials. Aluminum honeycomb panels are widely used in various fields such as construction, covering, public transportation and stone support.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Alumetal Color Chart.pdf
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
