Width 1250mm Aluminum Honeycomb Sheet Fireproof PVDF Coating
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | Alumetal Low Weight 4mm 10mm 25mm Aluminum Honeycomb Panel | Length: | Max 10000mm, Customized Size |
|---|---|---|---|
| Size: | Customize Size | Panel Thickness: | 4~500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof / A2 Non-combustible | Coating: | PVDF/PE,or Without Coating Mill Finished |
| High Light: | 1250mm Aluminum Honeycomb Sheet,Fireproof Aluminum Honeycomb Sheet,PVDF Coating Aluminum Honeycomb Sheet |
||
Product Description

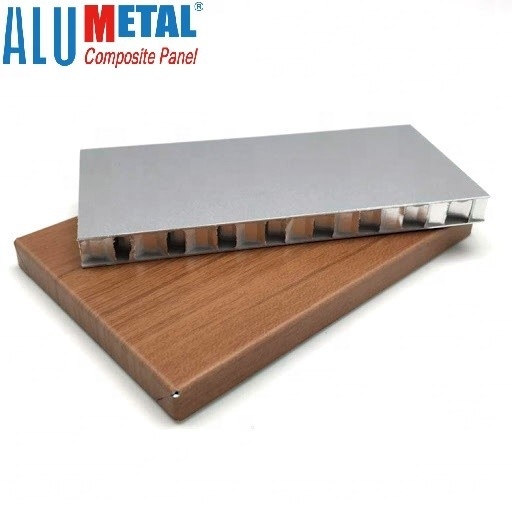

4-500mm 10mm 1250mm Aluminum Honeycomb Panel Board Sheets
Aluminum honeycomb panel and bottom plate are mainly made of high-quality aluminum alloy plate or high-manganese alloy aluminum plate; the thickness of the panel is 0.8~1.5mm. In terms of cleanliness, it is stronger than PVDF; the thickness of the bottom plate is 0.6~1.0mm, and the total thickness is 12~25mm.
The core material adopts hexagonal 3003 aluminum honeycomb core, the thickness of aluminum foil is 0.04~0.06mm, and the side length is 5~6mm. Roll forming technology is used to complete the forming of the front and back skins. Fully automatic machine and equipment folding, the front and back skins are installed The edges bite tightly.
OEM/Customized Service is Provided
We have rich experience for customized service,such as: UV pritning,laser cutting,CNC cutting,screen printing,punching,blanks.We will customize the product according to your demands,any unique design is welcomed!
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
