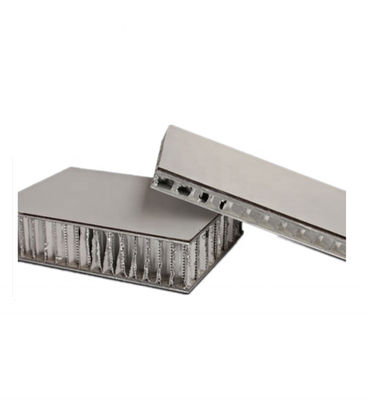

Lightweight Aluminum Honeycomb Panels 2300mm Aerospace 0.04mm
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | ALUMETAL |
| Model Number: | ALUMINUM HONEYCOMB PANEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing in plywood boxes |
|
Detail Information |
|||
| Product Name: | Aluminum Honeycomb Core Sandwich Panel Honeycomb Aluminium Sheet Airospace Price | Size: | 1220x2440mm |
|---|---|---|---|
| Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof | Total Thickness: | 3mm-500mm |
| Aluminum Skin Thickness: | 0.4mm - 3mm | Width: | Max 2300mm |
| Length: | Max 10000mm | Core Foil Thickness: | 0.04mm - 0.10mm |
| Coating: | PE PVDF FEVE ANODIZED & Mill Finish | Flatwise Compression: | 1MPa - 20MPa |
| High Light: | Aluminum Honeycomb Panel 2300mm,Aluminum Honeycomb Panel Aerospace,lightweight honeycomb panels 0.04mm |
||
Product Description
Aluminum Honeycomb Core Sandwich Panel Honeycomb Aluminium Sheet Airospace Price
Aluminum honeycomb panel is an application of aerospace materials in the field of civil construction. Aluminum honeycomb panel is suitable for civil construction, vehicle decoration and so on. The whole processing process is completed in the modern factory, using hot pressing technology, because of the high heat transfer value between the aluminum skin and the honeycomb structure, the thermal expansion and thermal contraction of the inside and outside aluminum skin synchronization; The honeycomb aluminum skin has small holes in it to release the gas inside the plate. Flow; The sliding buckle system will not cause structural deformation in the process of thermal expansion and cold contraction. The panel mainly adopts high quality 3003H24 alloy aluminum plate or 5052AH14 high manganese alloy aluminum plate as the base material. The thickness of the panel is 0.8~1.5mm fluorocarbon roller coated plate or color resistant baking paint. The cleanliness is better than PVDF, the bottom plate thickness is 0.6~1.0mm, the total thickness is 25mm.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Alumetal Color Chart.pdf
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
