A2 Fireproof Polypropylene Aluminum Honeycomb Panel Sheet 2200mm 1.5mm
Product Details:
| Place of Origin: | Shanghai |
| Brand Name: | Alumetal |
| Model Number: | ALUMETAL AHP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: Packing with plywood pallets |
|
Detail Information |
|||
| Product Name: | A2 Fireproof Aluminum Honeycomb Panels For External Walls | Surface Treatment: | Mirror, Anodized, Brushed, Foil Decoration, PE Coated, Printing, PVDF Coated |
|---|---|---|---|
| Panel Thickness: | 4mm-500mm | Width: | Max 2200mm |
| Length: | Max 10000mm | Core: | Aluminum Honeycomb Core |
| Surface: | Flat/Embossed | Color: | Customer's Requirements |
| Fire Resistance: | A2 Grade | Compress Flatwise Stress: | 1.05 MPa - 20 MPa |
| High Light: | A2 Fireproof Aluminum Honeycomb Panel,Aluminum Honeycomb Panel 2200mm,polypropylene honeycomb sheet 1.5mm |
||
Product Description
A2 Fireproof Aluminum Honeycomb Panels For External Walls

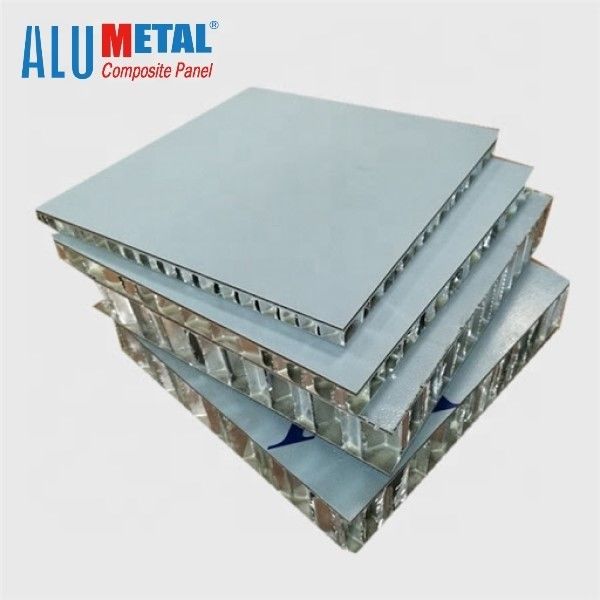

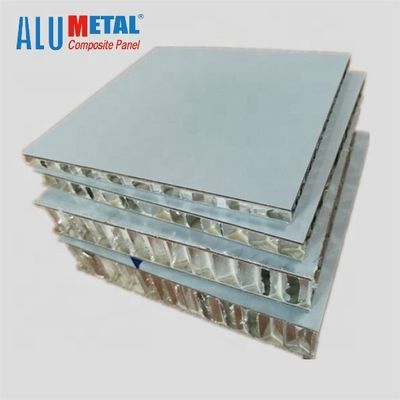

The aluminum honeycomb core sandwich panel is made by bonding two high-rigidity thin panels and a low-density honeycomb core with low strength and rigidity.
Alumetal aluminum honeycomb panels provide a flat, hard, and stable structure that can be used as a backing material for metal, glass, stone and other decorative surfaces in buildings. Uses include wall cladding, ceilings, canopies and elevator interiors.
Aluminum honeycomb panel is a honeycomb sandwich panel with honeycomb structure as the core. It is inspired by the natural hexagonal honeycomb. The aluminum honeycomb panel produced in this way becomes a new energy-saving, environmentally friendly and healthy material.
| Aluminum Alloy | AA3003 H18, AA5052 H18 |
| Total Panel thickness | 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
| Aluminum Skin thickness | 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
| Coating: | PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
| Length: | 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness: | 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
| Honeycomb Core Cell Size: | Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 ”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m) |
| Honeycomb Core Cell Side Length: | Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
| Edge: | Close Edge, Open Edge |
Click Below to Download Color Chart
Q1.What is your MOQ,Delivery Time, Payment?
A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks
2. Delivery Time: within 15 days after receiving deposit
4. Payment: 30% TT in advance ,70% against BL of copy or LC
Q2.Do you have any test certificates?
A2:Yes, stable good quality is key for long time business cooepration.
Factory have passed ISO9001:CE SGS, etc .
Q3.Do you service OEM?
A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose
Q4.What's the available panel size and thickness?
A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.
2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm
3. Panel Thickness:2mm-6mm; recommend 3,4mm
4.Aluminum thickness:0.05-0.5mm
Q5.Do you offer sample?
A5: Yes, samples are available if you are interested in our product
