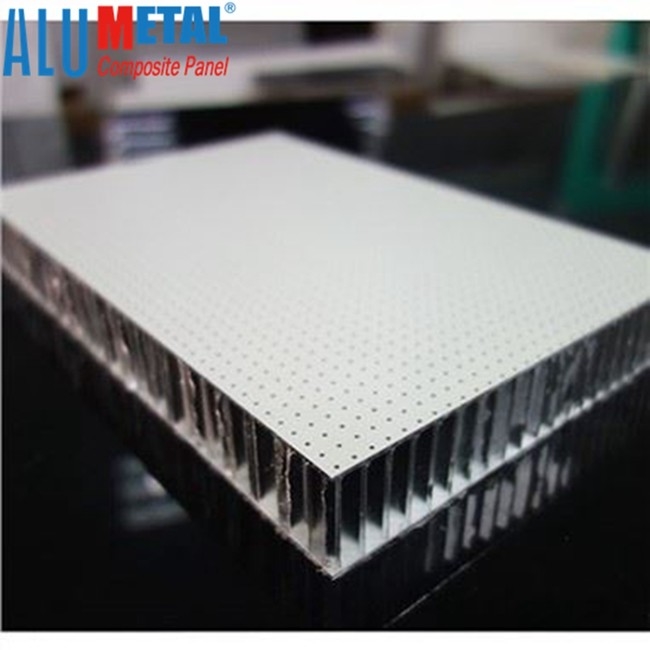

3.0mm Aluminium Honeycomb Composite Panel 2000mm Width Non Combustible
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | ALUMETAL |
| Model Number: | Alumetal FEVE ACP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Packing: 1)Packing by fumigated wooden pallet 2)Packing in bulk 3)According to customers' request |
|
Detail Information |
|||
| Product Name: | 0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm | Length: | Customized Length |
|---|---|---|---|
| Size: | Customized Size | Panel Thickness: | 4mm-500mm |
| Skin Thickness: | 0.5-3.0mm | Width: | 1020,1220,1250,1300,1500,1575mm,Max 2000mm,Custom Size |
| Core: | Fireproof/A2 Non-combustible | Coating: | PVDF/PE/Mill Finished, Etc |
| High Light: | 3.0mm Aluminium Honeycomb Composite Panel,Aluminium Honeycomb Composite Panel 2000mm,Non Combustible Aluminum Honeycomb Panel |
||
Product Description
0.5-3.0mm Aluminum Honeycomb Panel Board Sheets Max 2000mm
With the development of The Times, people's thinking is improving day by day, and what people pursue is more and more exquisite. Curtain wall decoration is no exception, from simple decoration to exquisite decoration, from ordinary decorative materials to advanced decorative materials.
Metal curtain wall, as a building curtain wall using sheet metal as the wall material, is a form of curtain wall in which glass is replaced with sheet metal. Because sheet metal has excellent processing performance, diverse colors and good safety, it can perfectly adapt to a variety of complex shapes design, can add concave and convex lines arbitrarily, and can process various types of curves Lines give architects a lot of room for development, so they are favored by architects and are therefore widely used in architectural design. Among them, the metal aluminum honeycomb panel material occupies an important position.
|
Aluminum Alloy |
AA3003 H18, AA5052 H18 |
|
Total Panel thickness |
4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm |
|
Aluminum Skin thickness |
0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm |
|
Coating: |
PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc |
|
Length: |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
|
Width: |
1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm |
|
Honeycomb Core Foil Thickness: |
0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm |
|
Honeycomb Core Cell Size: |
Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8 |
|
Honeycomb Core Cell Side Length: |
Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm |
|
Edge: |
Close Edge, Open Edge |
Click Below to Download Color Chart
Alumetal Color Chart.pdf
